| Material: | 304 stainless steel |

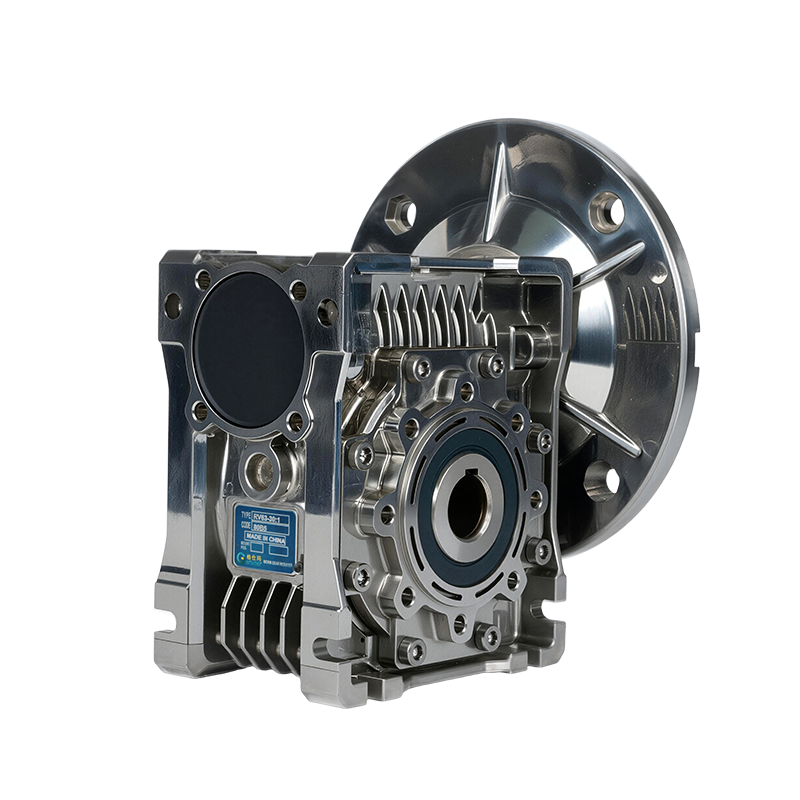

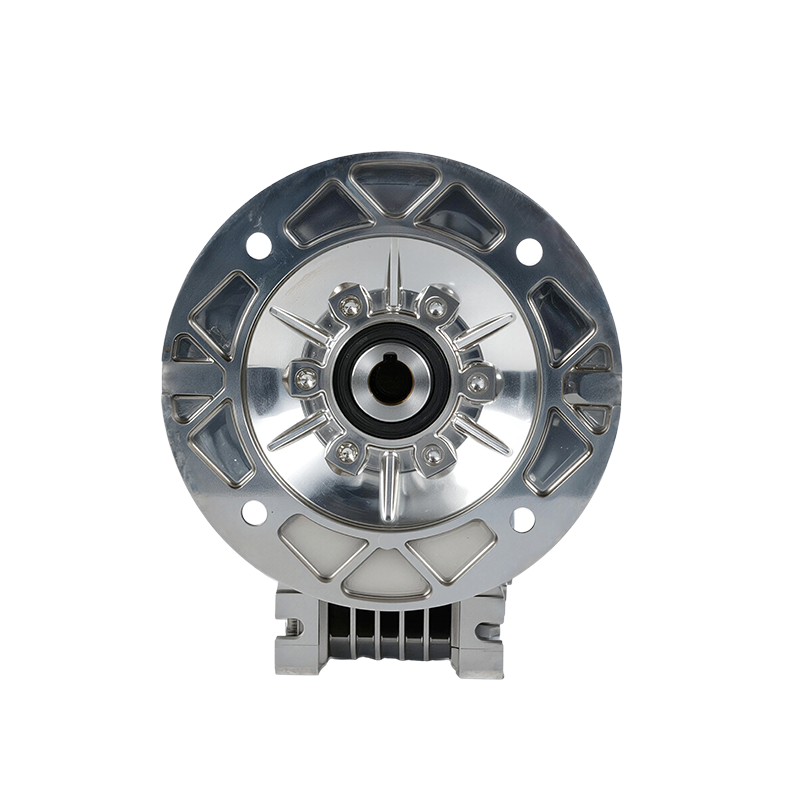

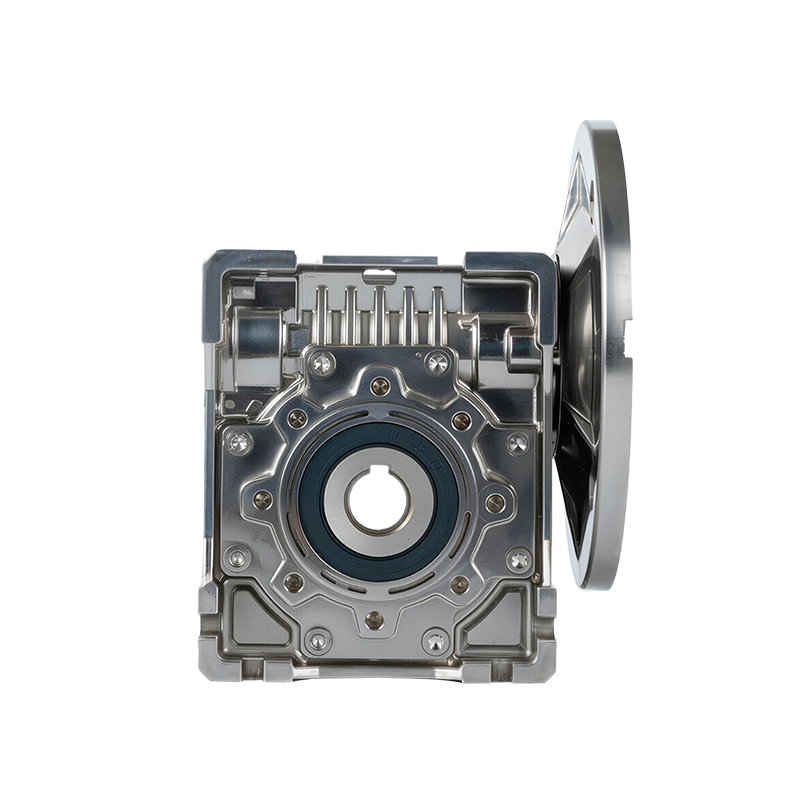

The NMRV 63 Gearbox is a reduction drive manufactured from 304 stainless steel, designed for various industrial power transmission applications. It employs a worm gear mechanism with a compact housing structure, offering flexible mounting options and compatibility with standard motor interfaces. The housing surface is machined and polished to achieve a uniform metallic finish.
Features
Material: Constructed from 304 stainless steel for both housing and internal worm components
Structure: Worm gear transmission design, single-stage reduction, perpendicular input/output shaft orientation
Reduction Ratio Range: 5:1 to 100:1
Rated Output Torque: Up to 300 Nm
Sealing Design: Shaft seals utilize lip seals, with sealant applied at housing joints
Operating Temperature Range: -20℃ to 150℃
Lubrication: Pre-filled with synthetic grease at factory
Advantages
304 stainless steel construction ensures extended service life in humid or corrosive environments
Compact design minimizes installation space requirements
Perpendicular shaft configuration facilitates integration in space-constrained applications
Pre-lubrication reduces initial setup and maintenance procedures
Applications
The NMRV 63 Gearbox is suitable for food processing equipment, packaging machinery, medical instruments, wastewater treatment systems, and marine transmission devices. It maintains operational reliability in industrial environments requiring frequent washdowns or exposure to chemical agents.
